Panorama Ruler

PanoRulerPlugin

Overview

The Panorama Ruler plugin annotates the dimensions of a property's key outlines in panorama mode.

Detailed features:

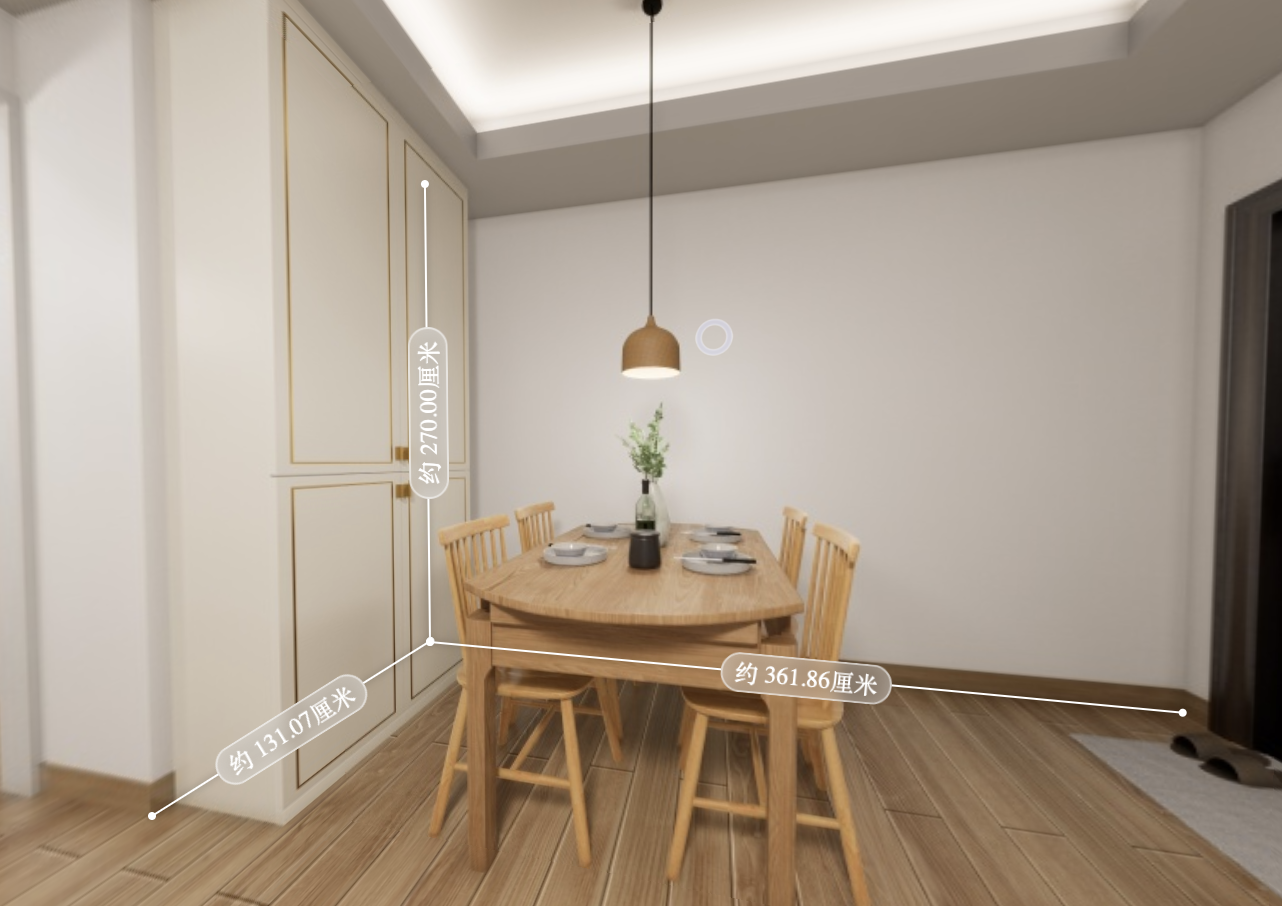

• Annotates the dimensions of a property's key outlines in panorama mode, such as the ceiling height, width, and depth of each room. Both real-scene VR and virtual-scene VR scenarios are supported.
• Only displays the ruler lines closest to the center of the current viewing angle.
• As you move between points or change the viewing angle, the ruler lines follow the movement and transformation.
• Adaptive value bubble length: the bubble length adapts to the value content, and the value content can also be configured for special requirements, such as when values need an inch unit.
• If a ruler line is shorter than that ruler's value bubble, the ruler line is not displayed.

External Demo

Open the PanoRulerPlugin demo to try the plugin outside this documentation page.

Installation

Choose either yarn or npm as needed:

npm install @realsee/dnalogel

Import via ES modules:

import { PanoRulerPlugin } from "@realsee/dnalogel"

Development Guide

Initialization

When initializing the Five instance, pass PanoRulerPlugin in the initialization plugin parameters.

import { Five } from '@realsee/five'
import { PanoRulerPlugin } from "@realsee/dnalogel";

const five = new Five({
    plugins: [
        [
            PanoRulerPlugin,
            'panoRulerPlugin', // Custom plugin name
            {
                // Parameter configuration
            }
        ]
    ]
})

React Initialization

When creating the FiveProvider, pass PanoRulerPlugin in the initialization plugin parameters.

import { PanoRulerPlugin } from "@realsee/dnalogel";
import { createFiveProvider, FiveCanvas } from "@realsee/five/react";

const FiveProvider = createFiveProvider({
    plugins: [
        [
            PanoRulerPlugin,
            'panoRulerPlugin', // Custom plugin name
            {
                // Parameter configuration
            }
        ]
    ]
});

Vue Initialization

When using the FiveProvider, pass PanoRulerPlugin in the initialization plugin parameters.

<template>
  <FiveProvider :fiveInitArgs="fiveInitArgs">
  </FiveProvider>
</template>
<script setup>
import PanoRulerPlugin from "@realsee/dnalogel/libs/PanoRulerPlugin";
import { FiveProvider, FiveCanvas } from "@realsee/five/vue";
const fiveInitArgs = {
    plugins: [
        [
            PanoRulerPlugin,
            'panoRulerPlugin', // Custom plugin name
            {
                // compassImageUrl: '' // Configure the compass image
            }
        ]
    ]
}
</script>

Loading Data

// Get the plugin instance, where `panoRulerPlugin` is the custom name set during initialization
const pluginInstance = five.plugins.panoRulerPlugin

// Call the `load` method to load the panorama ruler data
pluginInstance.load(roomInfo, roomRules, { distanceText: (distance) => `approx. ${distance.toFixed(1)} m` })

pluginInstance.load(roomInfo, roomRules, { distanceText: (distance) => `approx. ${(distance * 100).toFixed(2)} cm` })

Core Methods

• load: (roomInfo?: RoomInfo, roomRules?: RoomRules, options?: PanoRulerPluginOptions) => Promise<boolean> — Load the plugin data.

You need to load the plugin data manually. For the data source, see the OpenAPI documentation.

• enable: () => void — Turn on the ruler.
• disable: () => void — Turn off the ruler.

Source Reference

PanoRulerPlugin example source
